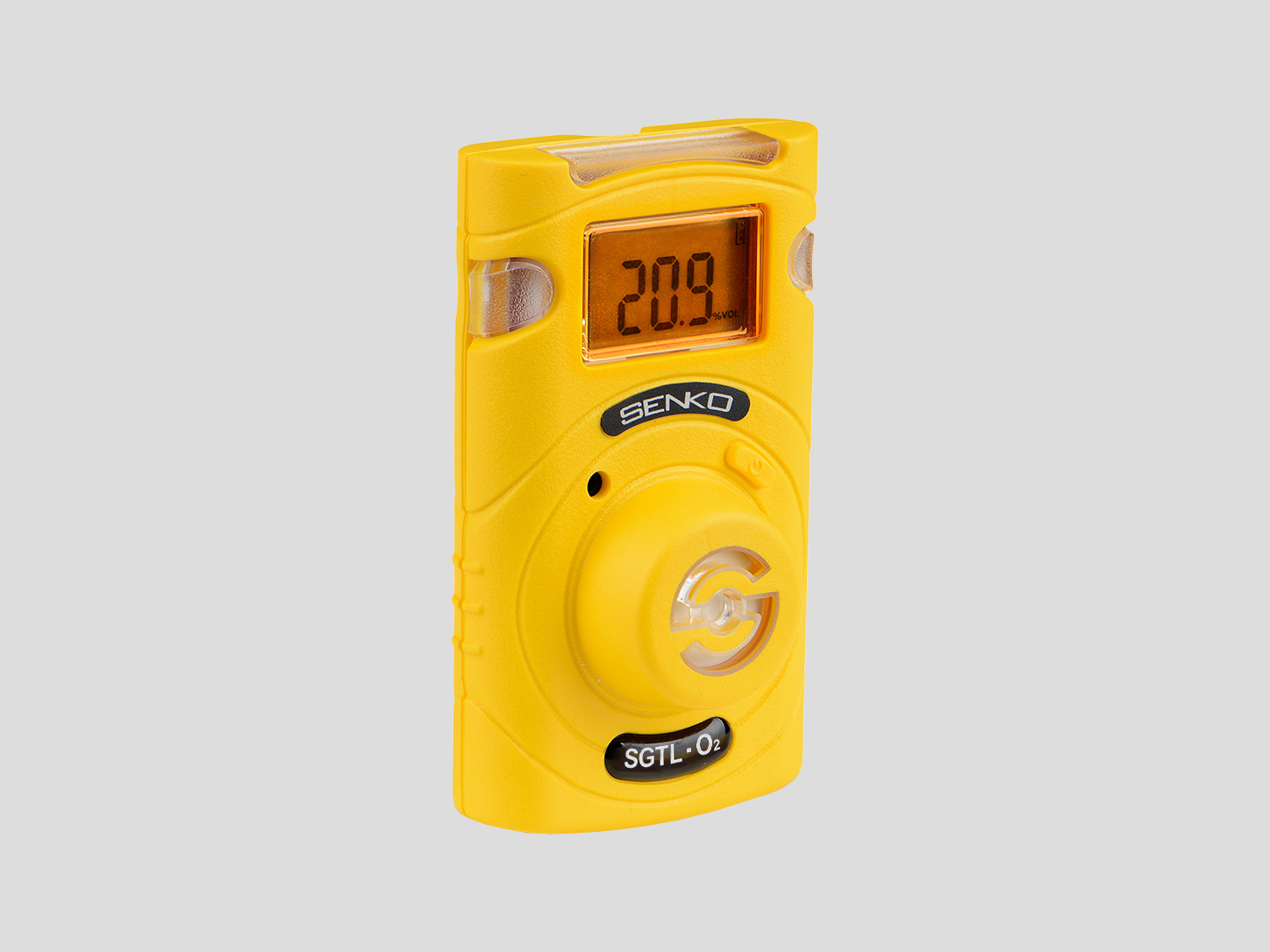

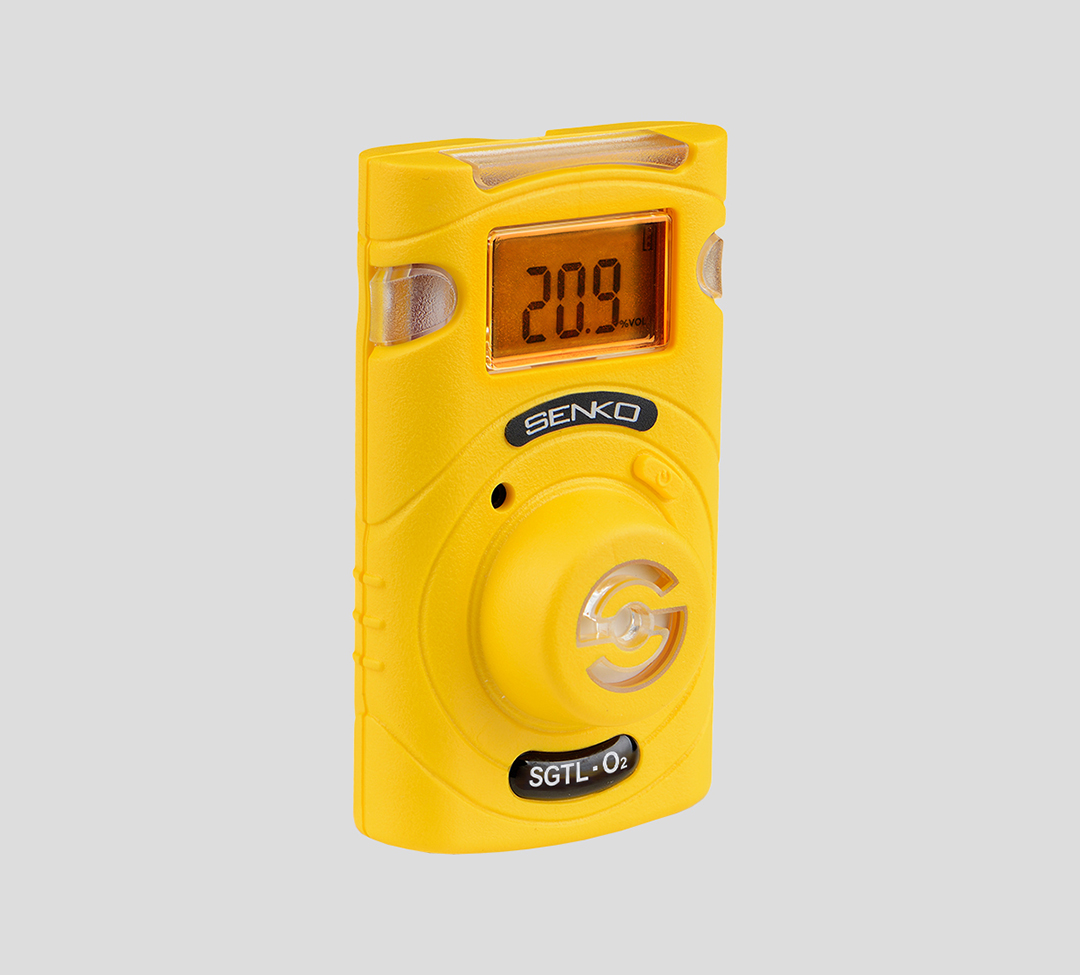

SP-SGT-L

Maintainable Single Gas Detector with Backlight

DESCRIPTION

SP-SGT-L is an upgraded portable, maintainable single gas detector designed to monitor oxygen deficiency and toxic gas hazards in ambient environments. The enhanced backlit LCD improves visibility in dark or confined spaces, while the device continuously monitors gas concentrations and alerts users through visual, vibration, and 95 dB audible alarms when gas levels exceed preset alarm thresholds. Featuring a replaceable sensor and battery with optimized power performance, SP-SGT-L provides reliable, long-term protection for industrial applications.

KEY FEATURES

- Upgraded LCD Display with Backlight: Integrated backlight improves readability in dark or confined spaces.
- Enhanced Alarm System: Provides visual, audible (95 dB), and vibration alarms for immediate hazard notification.
- Replaceable Sensor and Battery: Supports long service life through user-replaceable components.
- Optimized Runtime Performance: Maintains efficient power performance even with backlight-enabled usage.
- Power On / Off Functionality: Allows convenient device power control.
- Configuration via SENKO IR Link: Supports detector configuration using SENKO IR Link.
- Event / Data Logging Function: Records operational data for convenient monitoring and management.

CERTIFICATION

IECEx	Ex ia IIC T4 Ga
ATEX	II 1 G Ex ia IIC T4 Ga
PESO	Ex ia IIC T4 Ga
Compliance	KC, CE, FCC, RCM, REACH, RoHS, WEEE

Product Specifications

Model	SP-SGT-L
Sensor Type	Electrochemicals for Toxics and Oxygen
Measuring Method	Diffusion Type
Case	TPU covered Poly Carbonate (PC)
Dimension	49(W) x 85(H) x 32(D) mm / 1.93(W) × 3.35(H) × 1.26(D) inch
Weight	Toxic: 93g (3.28oz), O2: 104g (3.67oz) *Including battery and clip
Temperature	-20℃ to +60℃
Humidity	10% to 90% RH (Non-condensing)
Alarm	Visual(LCD and flashing LEDs), Audible(Buzzer ≥95dB), Vibration
Display	Liquid Crystal Display (LCD) with Backlight
Battery	System : Lithium Primary Battery, Nominal Voltage : 3.6V, Nominal capacity : 1,200mAh
IP	IP67
Operating life	3-4 years *Reusable service life: Replaceable battery and sensor enable long-term operation and extended product life.
Components	Calibration Cap, Manual, Calibration and Test Certificate
Options	SENKO IR Link
Certification	IECEx: Ex ia IIC T4 Ga ATEX: II 1 G Ex ia IIC T4 Ga PESO: Ex ia IIC T4 Ga
Compliance	KC, CE, FCC, RCM, REACH, RoHS, WEEE

Sensor Specifications

Gas	Measuring Range	Low Alarm	High Alarm	Resolution
O₂	0~30%Vol	19%Vol	23%Vol	0.1%Vol
CO	0~500/1,000/2,000ppm	30ppm	60ppm	1ppm
H₂S	0~100/200ppm	10ppm	15ppm	0.1ppm
H₂	0~1,000ppm	100ppm	500ppm	1ppm
SO₂	0~50/100ppm	2ppm	5ppm	0.1ppm
NH₃	0~100/500ppm	25ppm	35ppm	1ppm
NO₂	0~20ppm	3ppm	5ppm	0.1ppm
Cl₂	0~20ppm	0.5ppm	1ppm	0.1ppm
HCN	0~50ppm	2ppm	5ppm	0.1ppm
PH₃	0~5/20ppm	0.5ppm	1ppm	0.1ppm
ClO₂	0~5ppm	0.1ppm	0.3ppm	0.1ppm
HCl	0~20ppm	1ppm	2ppm	0.5ppm
